import matplotlib.pyplot as plt
import numpy as np
import math

class Layer:

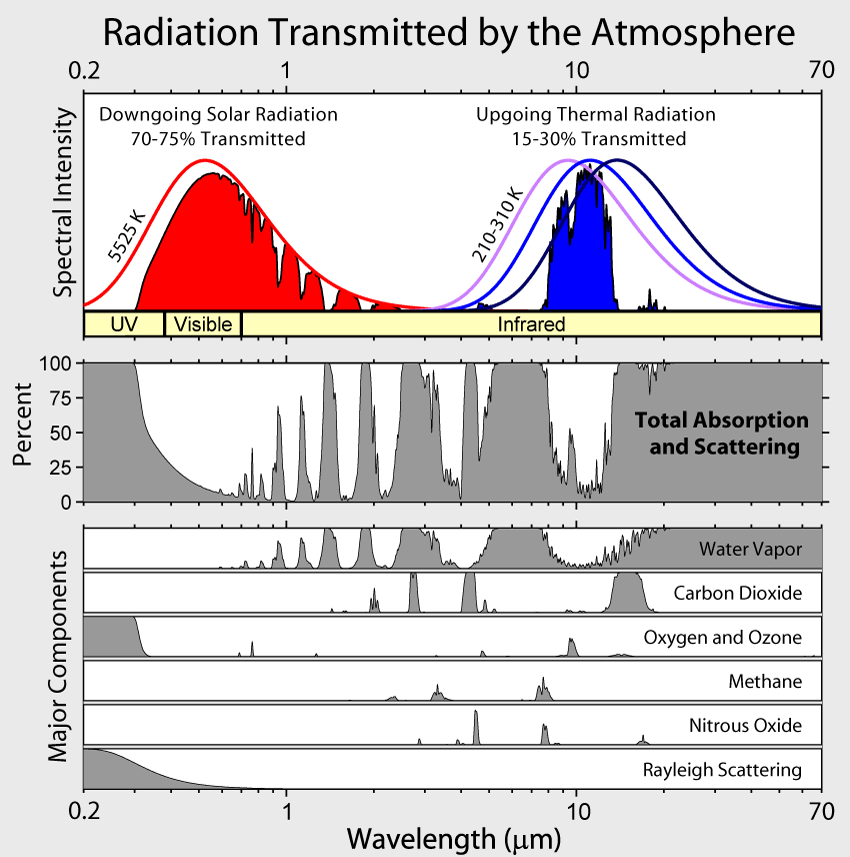

    # AW = atmopsheric window: the radiation of
    # wavelengths that the atmosphere is transparant to
    # NAW = the remaining part of the radiation that the
    # atmosphere is not transparent to.
    def __init__(self, pos):
        # pos is the position of this Layer object in a list of Layer objects
        self.pos = pos
        self.outgoing_up = 0
        self.outgoing_up_AW = 0
        self.outgoing_up_NAW = 0
        self.outgoing_down_AW = 0
        self.outgoing_down_NAW = 0
        self.outgoing_down = 0
        self.incoming_store = []
        self.temp_store = []


    def update_layer(self):
        # absorbtion is global so it can be defined
        # outside of this function/class definition
        global absorbtion
        global atm_window

        if atm_window == True:
            AW_perc = 0.25
            #print("true")
        else:
            AW_perc = 0
            #print("false")

        # The first few examples will have a constant absorbtion rate
        # across the vertical profile
        if constant_absorbtion == True:
            absorbtion = [absorbtion_base for x in range(number_layers)]
        else:
            # In this formula, the absorbtion per layer starts at absorbtion_base in
            # the bottom layer, and declines to half of the absorbtion_base in
            # the top layer
            absorbtion = [(1-(0.85/number_layers)*x)*absorbtion_base for x in range(number_layers)]

        # Each round of updates, the incoming energy is set to 0, after which it will
        # be built up from the outgoing energy from layers above and below
        self.incoming = 0
        self.incoming_from_below = 0
        self.incoming_from_below_AW = 0
        self.incoming_from_above = 0

        # The surface absorbs a flux of 239 J.s^-1.m^-2
        # (The self.pos goes upfrom 0 (surface)).
        if self.pos == 0:
            self.incoming_from_above = 239

        # RADIATION FROM LAYERS BELOW
        # Select layers 0 up to but not including itself.
        for ind, layer in enumerate(layers[0:self.pos]):
            # N.B.: I do not multiply with absorbtion yet here, so that I can use the unmodified
            # "incoming_from_below" in the calculation of the temperature.

            # This calculates what fraction of the NAW radiation emitted by the layer below reaches the
            # layer under consideration.
            pass_through = math.prod([(1-x) for x in absorbtion[layer.pos+1:self.pos]])

            # This calculates how much of the outgoing_up_NAW reaches the layer. I do not
            # multiply this with the absorbtion yet, so that I can use the unmodified
            # "incoming_from_below" in the calculation of the temperature (where I need
            # the part that passes through, rather than the part that is absorbed).
            self.incoming_from_below = self.incoming_from_below + (layer.outgoing_up_NAW*pass_through)

            # This calculates how much AW radiation reaches the layer. The atmosphere does
            # not absorb AW radiation, it just reaches it. This is used in calculating the temperature
            # that belongs to the total upward flux of each layer.
            self.incoming_from_below_AW = self.incoming_from_below_AW + layer.outgoing_up_AW

        # RADIATION FROM LAYERS ABOVE
        # This part does not apply to the top layer, because it does not receive anything from above.
        if self.pos < (number_layers-1):
            # Select layers self.pos+1 up to the end, and enumerate it, so that the layer directly above gets the ind 0
            for ind, layer in enumerate(layers[self.pos+1:]):

                # This calculates what fraction of the radiation emitted by a layer above reaches the
                # layer under consideration.
                pass_through = math.prod([(1-x) for x in absorbtion[self.pos+1:layer.pos]])

                # The surface receives all outgoing_down_AW from all overlying layers.
                # The surface also receives outgoing_down_NAW from overlying layers, but only the
                # part that is not absorbed by the layers in between.
                # Reminder #: the surface absorbs 100 %...
                if self.pos == 0:
                    self.incoming_from_above = self.incoming_from_above + (layer.outgoing_down_NAW*pass_through) + layer.outgoing_down_AW
                else:
                    # A layer does not receive any outgoing_down_AW because the atmosphere is transparent for this radiation.
                    # A layer does receive outgoing down_NAW but only the part that it absorbs.
                    self.incoming_from_above = self.incoming_from_above + \
                    absorbtion[self.pos]*layer.outgoing_down_NAW*pass_through

        self.incoming = (absorbtion[self.pos]*self.incoming_from_below) + self.incoming_from_above

        # If the layer is the surface, all incoming radiation becomes outgoing_up
        if self.pos == 0:
            self.outgoing_up = self.incoming
            self.outgoing_up_AW = self.incoming*AW_perc
            self.outgoing_up_NAW = self.incoming*(1-AW_perc)
        # For all other layers, energy radiates upwards and downwards
        else:
            self.outgoing_up = self.incoming/2
            self.outgoing_up_AW = self.outgoing_up*AW_perc
            self.outgoing_up_NAW = self.outgoing_up*(1-AW_perc)

            self.outgoing_down = self.incoming/2
            self.outgoing_down_AW = self.outgoing_down*AW_perc
            self.outgoing_down_NAW = self.outgoing_down*(1-AW_perc)

        # Each layer radiates energy to space (just for the sake of keeping track)
        # This is calculated with the NAW-radiation emitted upwards, reduced by the amount of absorbtion
        # by the layers in between plus the AW-radiation (that is not absorbed by the layers in between).
        self.to_space = self.outgoing_up_NAW*(math.prod([(1-x) for x in absorbtion[self.pos+1:]]))+self.outgoing_up_AW

        # Calculate temperature per layer. I am calculating the temperature as felt "from above".
        # So that means the radiation that is absorbed (from above and below) and re-emitted upwards
        # by the layer *plus* the radiation (Both NAW and AW) that passes from blow, upwards through the the layer.
        self.temp = ((self.outgoing_up+(self.incoming_from_below*(1-absorbtion[self.pos]))+self.incoming_from_below_AW)/SBC)**(1/4)

        # Store incoming energy and temperature
        self.incoming_store.append(self.incoming)
        self.temp_store.append(self.temp)

# Stefan Boltzmann constant
SBC = 5.670374419*(10**-8)
time = range(50)

def run_and_plot():

    # This makes it possible to use the variable "layers"
    # in the other function.
    global layers

    # Create the layers
    layers = []
    for x in range(number_layers):
        layers.append(Layer(x))

    # Running model
    for t in time:
        space_layers = []
        for ind, layer in enumerate(layers):
            layer.update_layer()
            # list of energy lost to space per layer
            space_layers.append(layer.to_space)

    # taking space_layers of last model run, and sum up energy lost of those layers
    sum_space_tot = sum(space_layers)
    # create a list that shows what fraction of total energy lost is lost per layer
    sum_space_part = [x / sum_space_tot for x in space_layers]
    print(f'Total energy sent back to space (sum_space_tot) {round(sum_space_tot,2)} W.m-2.s-2')

    #-----------------------------
    # Plotting
    #-----------------------------
    plot_layers_temp = [x.temp_store for x in layers]

    fig, axs = plt.subplots(nrows=1, ncols=2, figsize=(12, 6))

    # First subplot for the line plots
    for ind, temp_in_kelvin in enumerate(plot_layers_temp):
        if ind == 0:
            axs[0].plot(time, temp_in_kelvin, label="Surface")
        else:
            axs[0].plot(time, temp_in_kelvin, label=f"Layer {ind}")

    y1, y2 = axs[0].get_ylim()
    x1, x2 = axs[0].get_xlim()

    ax2 = axs[0].twinx()
    ax2.set_ylim(y1 - 273.15, y2 - 273.15)
    ax2.set_yticks(range(int(y1 - 273.15), int(y2 - 273.15), 10))
    ax2.set_ylabel('Temp in °C')
    ax2.set_xlim(x1, x2)

    axs[0].set_ylabel('Temp in °K')
    axs[0].set_xlabel('Time')
    axs[0].legend()

    # Annotate the final value on the graph
    final_values = [temps[-1] for temps in plot_layers_temp]
    for ind, final_value in enumerate(final_values):
        label = f'{round(final_value, 2)} K' if ind == 0 else f'{round(final_value, 2)} K'
        axs[0].annotate(label, (time[-1], final_value), textcoords="offset points", xytext=(-10, 5), ha='center', fontsize=6)

    # Second subplot for bar plot
    xticklabels = ['surface'] + [str(i) for i in np.arange(1, len(sum_space_part))]
    axs[1].bar(xticklabels, sum_space_part)
    axs[1].set_xlabel('Origin of energy loss')
    axs[1].set_ylabel('Value')

    axs[0].set_title("Temp different layers")
    axs[1].set_title("Fraction of total energy loss to space by surface/layers")

    plt.tight_layout()
    plt.show()

number_layers = 2 # # this means the model is divided in one surface layer and 1 atmospheric layer
absorbtion_base = 1 # this means that every layer absorbs 100% of the NAW radiation it receives
constant_absorbtion = True # this means that the absorbtion is constant across the vertical profile
atm_window = False # this means that we are not implementing the atmospheric window.
run_and_plot()

Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

number_layers = 2 # # this means the model is divided in one surface layer and 1 atmospheric layer
absorbtion_base = 1 # this means that every layer absorbs 100% of the NAW radiation it receives
constant_absorbtion = True # this means that the absorbtion is constant across the vertical profile
atm_window = True # this means that we are implementing the atmospheric window.
run_and_plot()

Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

number_layers = 3 # this means the model is divided in one surface layer and 2 atmospheric layers
absorbtion_base = 1 # this means that every layer absorbs 70% of the NAW radiation it receives
constant_absorbtion = True # this means that the absorbtion is constant across the vertical profile
atm_window = True # this means that we are implementing the atmospheric window.
run_and_plot()

Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

number_layers = 6 # this means the model is divided in one surface layer and 9 atmospheric layers
absorbtion_base = 0.39 # this is the percentage of NAW radiation that every layer absorbs
print((1-absorbtion_base)**(number_layers-1)) # This is the transparency for NAW radiation of the atmosphere as a whole
constant_absorbtion = True # this means that the absorbtion is constant across the vertical profile
atm_window = True # this means that we are implementing the atmospheric window.
run_and_plot()

0.08445963009999999
Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

number_layers = 6 # this means the model is divided in one surface layer and 5 atmospheric layers
absorbtion_base = 0.65 # this is the percentage of NAW radiation that every layer absorbs
constant_absorbtion = False # this means that the absorbtion is not constant across the vertical profile
atm_window = True # this means that we are implementing the atmospheric window.

run_and_plot()

print("-----------\nOverall fraction of radiation from surface escaping to space: %s." % (round(math.prod(absorbtion),4)))
print("-----------\nOverall percentage of radiation from surface escaping to space: %s percent.\n-----------" % (round(100*math.prod(absorbtion),2)))

fig, ax = plt.subplots()
plt.title("Aborbtion vs layer index")
ax.plot(absorbtion, range(number_layers))

# Add axis labels and title
ax.set_xlabel('Absorbtion percentage of individual layers')
ax.set_ylabel('Layer index')
ax.set_title('Absorbtion vs layer index')

Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

-----------
Overall fraction of radiation from surface escaping to space: 0.0034.
-----------
Overall percentage of radiation from surface escaping to space: 0.34 percent.
-----------

Text(0.5, 1.0, 'Absorbtion vs layer index')

number_layers = 6 # this means the model is divided in one surface layer and 5 atmospheric layers
absorbtion_base = 0.65*1.2 # this is the percentage of NAW radiation that every layer absorbs + enhanced greenhouse effect
constant_absorbtion = False # this means that the absorbtion is constant across the vertical profile
atm_window = True # this means that we are implementing the atmospheric window.

run_and_plot()

fig, ax = plt.subplots()
ax.plot(absorbtion, range(number_layers))

# Add axis labels and title
ax.set_xlabel('Absorbtion percentage of individual layers')
ax.set_ylabel('Layer index')
ax.set_title('Absorbtion vs layer index')

Total energy sent back to space (sum_space_tot) 239.0 W.m-2.s-2

Text(0.5, 1.0, 'Absorbtion vs layer index')
